Build the sound around your playing
Combine overdrive and distortion for driven sounds, then add chorus, reverb or delay for movement and space. The boost section gives you a separate way to raise the level when a phrase needs more presence.
Multi-Effects
THG5
Six effects at the centre of your build.
THG5 combines guitar effects, amp simulation and six preset banks in a board-format processor. It gives you a complete set of sound-shaping controls for a custom installation, with direct access to individual effects and saved combinations. Choose THG5 when the exposed-board format suits your project.
- Board-format multi-effects processor
- Amp simulation and six effects
- Six preset banks with LIVE control
View current pricing and availability on eBay.
What makes THG5 different
Keep your favourite settings ready
Six memory banks let you save effect settings and return to them without rebuilding a sound. Use BANK mode for prepared combinations, or LIVE mode when you want to switch effects individually while playing.

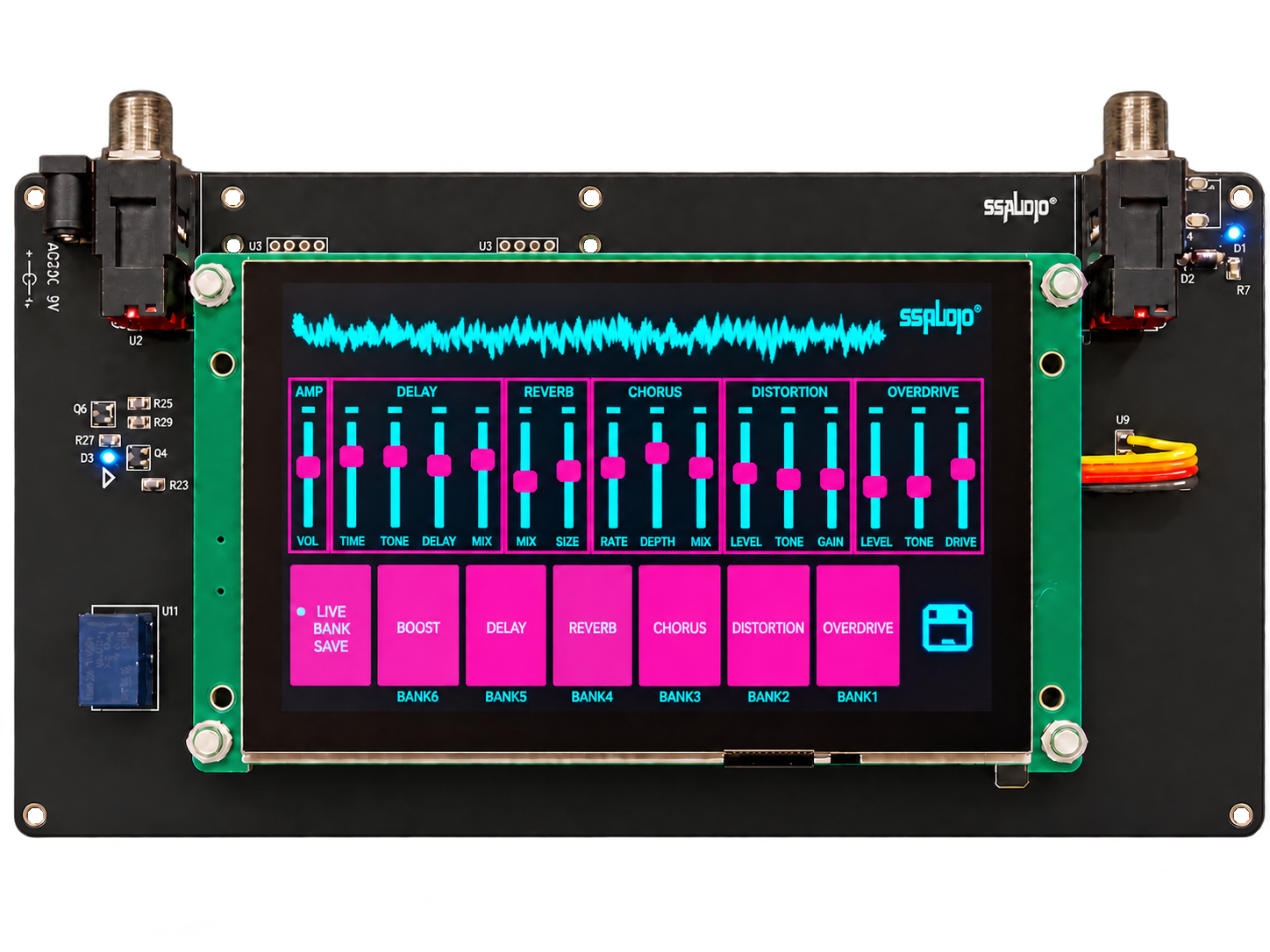

A board for your own installation
THG5 presents the processor and its controls as an exposed board. Plan the enclosure, mounting clearance and access to the input, output and DC connector around your build. The effects and memory functions remain available from the on-screen interface.
Make it part of your setup
- Plan your mounting and enclosure before installing the board, leaving access to the connectors and controls.
- Connect the guitar and output equipment, then use LIVE mode to build a sound from individual effects.
- Store useful combinations in the six banks so your finished setup can return to them quickly.
Product details
- Product
- THG5
- Effects
- Overdrive, distortion, chorus, reverb, delay and boost
- Memory
- 6 preset banks
- Modes
- LIVE / BANK / SAVE
- Delay controls
- Regeneration, tone, delay time and mix
- Chorus controls
- Mix, depth and rate
- Drive controls
- Separate level, tone and drive/gain controls
- Input impedance
- 500 kΩ
- Output impedance
- 10 kΩ
- Connections
- 6.35 mm mono input and output; DC power jack
- Power
- 9 V DC, centre negative; specified adapter: 2 A
- Format
- Exposed effects board
- Amp simulation
- Built in
- Delay time
- Up to 300 ms
- Dimensions (W × D × H)
- 110 × 215 × 23.5 mm
