FXBLOX Modules

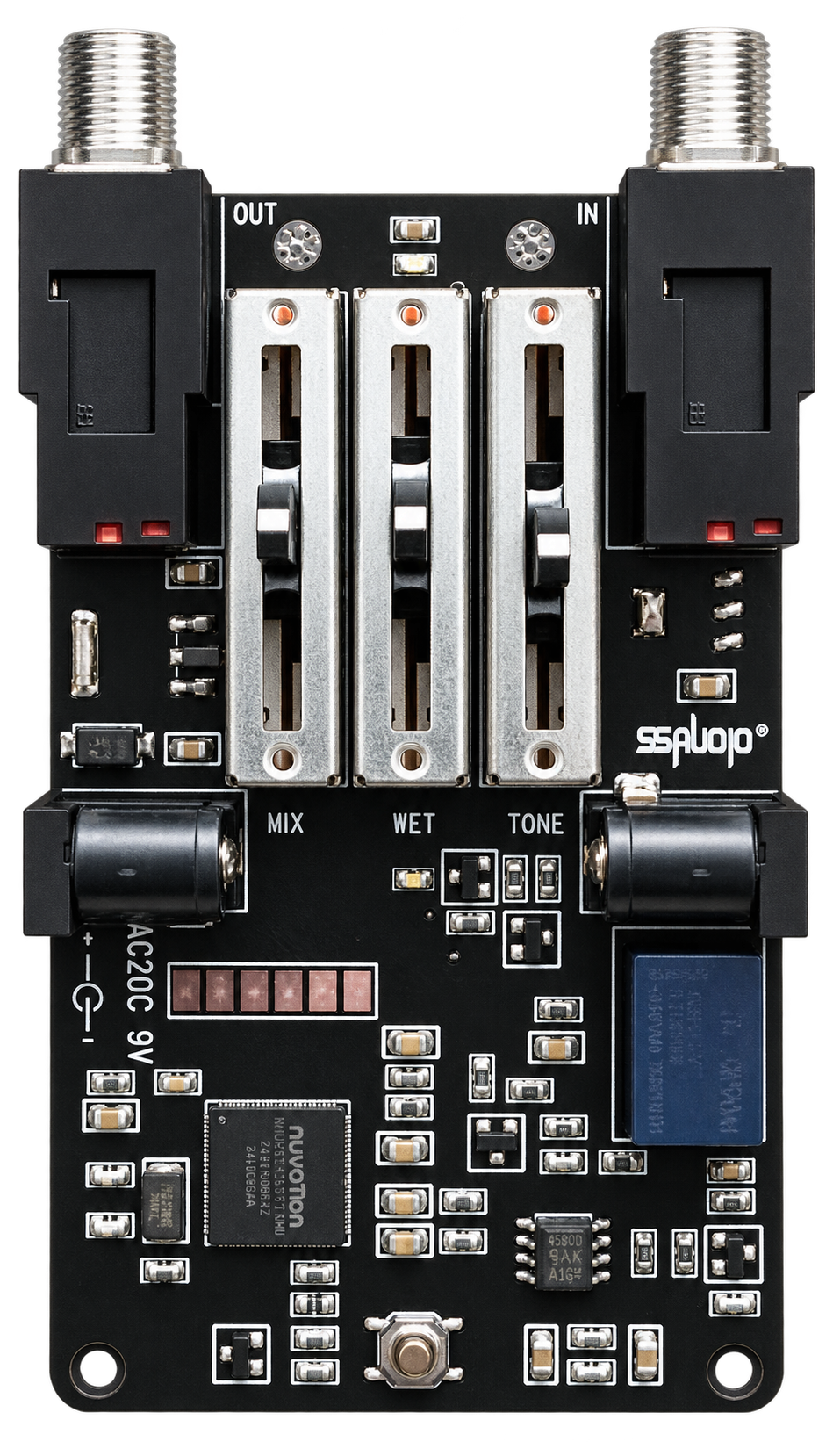

SPRING+

Reverb controls for your next build.

SPRING+ is an exposed reverb module with Mix, Wet and Tone slide controls. Add a dedicated reverb stage to a custom effects project while keeping its principal adjustments visible and accessible. Its board format lets you plan the housing and control access around the way you want to use it.

Mix / Wet / Tone slide controls
Dedicated reverb switch
Compact FXBLOX board format

Buy on eBay ↗View product details ↓

View current pricing and availability on eBay.

What makes SPRING+ different

Balance the reverb contribution

Separate Mix and Wet controls let you work on the balance and reverberant component, with Tone available to refine the sound. Adjust while playing the same phrase to judge how the reverb sits behind the original instrument.

See the control positions

Three slide controls present the settings directly on the board. The reverb switch and status indicators support a straightforward layout, useful when planning a front panel that keeps the main adjustments easy to reach.

Plan it into your project

The module provides mono audio input and output and two DC jacks on a 54 × 90 mm board footprint. Allow for connectors and slider access when designing an enclosure, and use the specified supply polarity.

Make it part of your setup

Plan mounting and access to the sliders, switch and connectors before installing the module.
Connect the audio path and the specified power supply, then start with a restrained effect setting.
Adjust Mix, Wet and Tone together to find the reverb balance that suits your playing.

Product details

Product: SPRING+
Catalog model: SSAE-SPR
Controls: Mix, wet, tone; reverb switch
Input impedance: 510 kΩ
Output impedance: 10 kΩ
Connections: 6.35 mm mono input/output; two DC jacks
Power: 9 V DC, centre negative; specified adapter: 2 A
Dimensions (W × D × H): 54 × 90 × 18 mm
