Place the repeats
Delay Time sets the spacing between repeats. Compare shorter and longer settings against the rhythm of your phrase to decide whether the effect should sit close to the original note or leave more space after it.
FXBLOX Modules
REFLECT
A focused delay stage with direct controls.
REFLECT brings Mix, Regeneration and Delay Time to an exposed FXBLOX module. Set how far apart the repeats fall, how they build and how strongly they sit behind your playing. The slide controls make those settings visible in a compact board suited to a custom effects installation.
- Mix / Regeneration / Delay Time
- Dedicated delay switch
- Board format with visible slide settings
View current pricing and availability on eBay.
What makes REFLECT different
Control the repeat balance
Regeneration adjusts the returning repeats, while Mix sets their contribution to the output. Begin with conservative settings and increase them separately to hear the difference between a stronger first repeat and a longer sequence of repeats.
Integrate a simple delay module

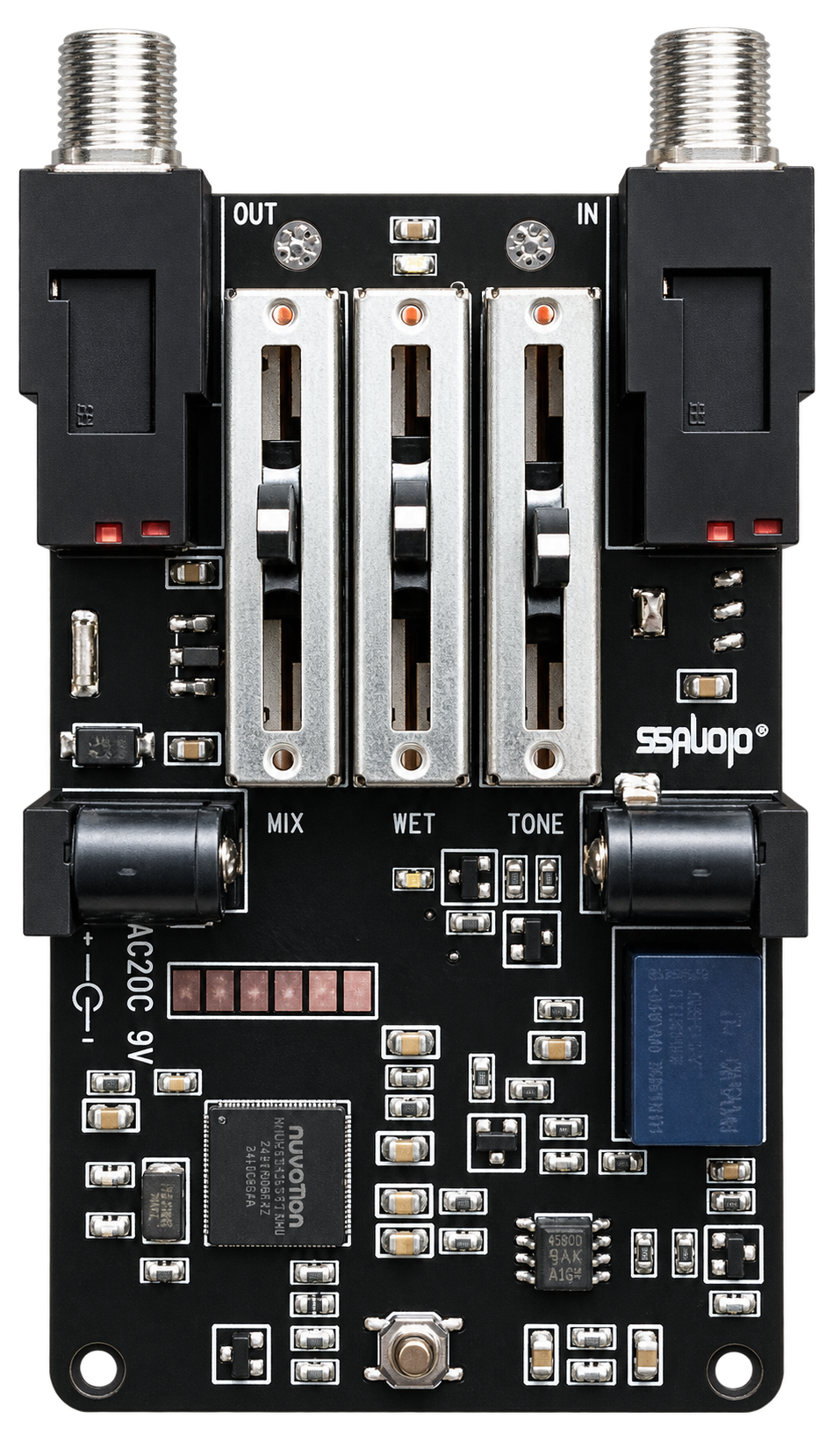

The 54 × 90 mm board provides mono audio input and output, two DC jacks and status indicators. Plan access to all three sliders and the delay switch when fitting the module to your own enclosure.
Make it part of your setup
- Connect the module in your audio path using the specified supply and polarity.
- Choose Delay Time, then introduce regeneration gradually while listening to a short phrase.
- Set Mix for the desired effect level and compare active and bypassed operation with the delay switch.
Product details
- Product
- REFLECT
- Catalog model
- SSAE-REF
- Controls
- Mix, regeneration, delay time; delay switch
- Input impedance
- 510 kΩ
- Output impedance
- 10 kΩ
- Connections
- 6.35 mm mono input/output; two DC jacks
- Power
- 9 V DC, centre negative; specified adapter: 2 A
- Dimensions (W × D × H)
- 54 × 90 × 18 mm
