Match the output to the equipment
The adapter provides a specified 9 V DC, 2 A output. Compare both voltage and current requirements with the device you intend to power; a matching connector alone does not establish that an adapter is suitable.
Power Supplies
AC2DC
9 V power for a compatible effects setup.

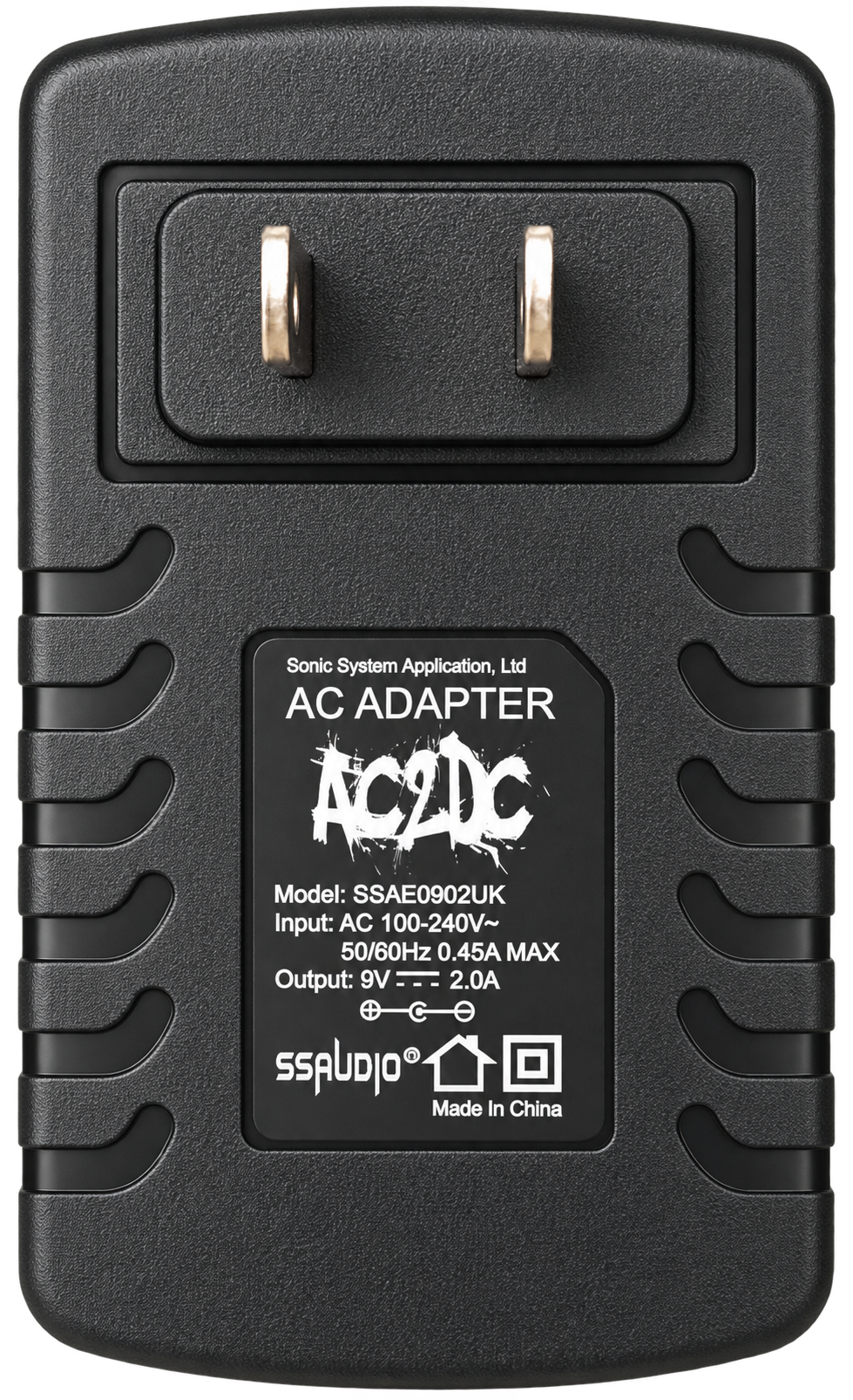

AC2DC is an adapter for guitar pedals and music equipment that use a compatible 9 V DC supply. The original specification lists a 2 A output and centre-negative polarity, with a 100–240 V AC input range. Match the voltage, connector and polarity to your equipment before selecting it for your setup.
- 9 V DC / 2 A output
- Centre-negative polarity
- 100–240 V AC, 50/60 Hz input
View current pricing and availability on eBay.
What makes AC2DC different
Check the connector and polarity
The original specification identifies outer positive and inner negative polarity. It lists a 5.5 mm outer connector diameter and 2.5 mm inner diameter with 2.1 mm support. Check the actual connector fit against your device before use.
Choose the right version for your setup
The input range is specified as 100–240 V AC at 50/60 Hz. Confirm the mains-plug version offered in the listing for your location, and use the adapter in a dry environment in accordance with its product instructions.
Make it part of your setup
- Check the target device for its voltage, current requirement and polarity markings.
- Confirm that the supplied DC connector and mains plug match your equipment and location.
- Connect the adapter for normal dry indoor use, keeping the cable and connections accessible.
Product details
- Product
- AC2DC
- Input
- 100–240 V AC, 50/60 Hz
- Output
- 9 V DC, 2 A
- Polarity
- Centre negative; outer positive
- Connector
- 5.5 mm outer / 2.5 mm inner; catalog lists 2.1 mm support
- Case
- Black polycarbonate
- Weight
- Under 200 g
